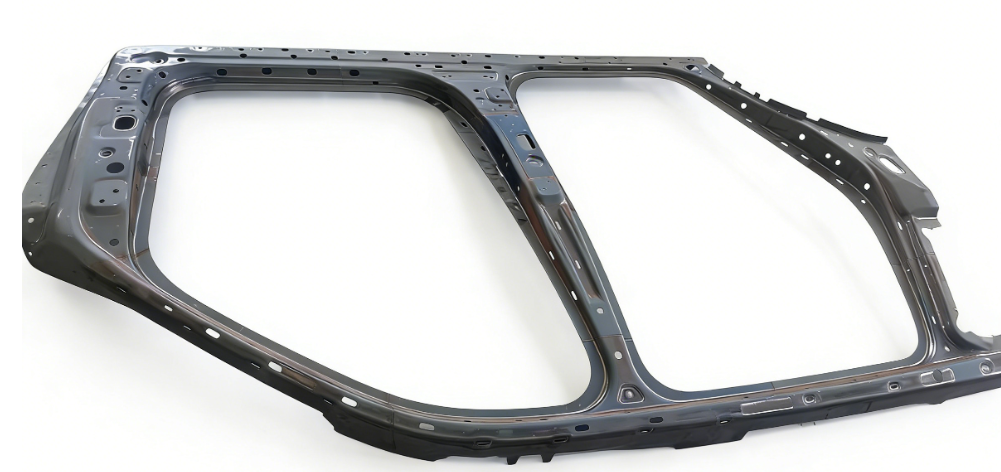

Hot-Formed Integrated Door Ring

Technical Innovation: Integrates A-pillar, B-pillar, rocker panel, upper/lower reinforcement plates into a continuous closed ring without intermediate weld joints, continuous force flow; single-side weight reduction of 18.6%, overall closed ring improves side torsional rigidity by 10%-15%.

Key: Laser tailor-welded blanks + hot stamping combination - different thickness/strength steel plates are first laser welded, then hot stamped as a whole, with regional raw material welding based on material functionality requirements of different areas.

Quality Advantages:

Part Count: Reduced from 6-8 pieces to 1, welding spots reduced by 70%+, significantly lowering assembly errors and failure risks.

Forming Consistency: One-time hot stamping greatly improves dimensional accuracy compared to multi-piece welding, batch stability better than multi-piece welding.

Cost Advantages:

Mold Sets: Traditional 6-8 sets to integrated 1 set, mold cost reduced by 19.6%.

Development Cycle: Shortened by 12.5%, tooling debugging and validation costs significantly reduced.

Production Processes: Eliminates multi-piece stamping, welding, and inspection, single-piece manufacturing cost reduced by 7%.

Labor/Energy: Reduced welding stations and labor, decreased energy consumption and maintenance costs.

Custom specifications available upon request.
